CB-Mobilfunkgerät PC 50

CB-Mobilfunkgerät PC 50; Pan International (ID = 952353) Citizen
Use red slider bar for more.
CB-Mobilfunkgerät PC 50; Pan International (ID = 952353) Citizen

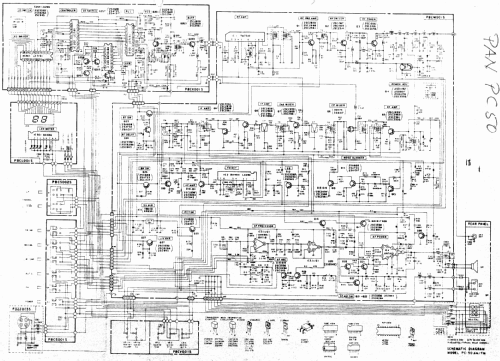

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg
Year: 1980 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Direct Current supply (DC) / 13,2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: CB-Mobilfunkgerät PC 50 - Pan International GmbH, Pan
Material Metal case
Shape Tablemodel with Push Buttons.
Notes 40 Kanäle FM; 12 Kanäle AM im 11m-Band (CB)
Priorität Kanal 9
Automatischer Suchlauf
Mikrofonkompressor
SWR-Meter; Digitale Kanalanzeige
Leuchtdiodenanzeige: Senden,Empfangen,AM-Betrieb
Kanaltasten (up/down)
Anschlüsse Rückseite: Antenne; Ext.Lautsprecher;Selektivruf; 13,2V DC; FM-Select
Literature/Schematics (1) Pan International FTZ und Export- Geräte- Katalog -3-86

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
