Combicontroll 8000 Spezial

Combicontroll 8000 Spezial ; Pan International (ID = 1004996) Radio Combicontroll 8000 Spezial ; Pan International (ID = 1004997) Radio
Combicontroll 8000 Spezial ; Pan International (ID = 1004998) Radio Combicontroll 8000 Spezial ; Pan International (ID = 1004999) Radio
Combicontroll 8000 Spezial ; Pan International (ID = 2042650) Radio Combicontroll 8000 Spezial ; Pan International (ID = 2042866) Radio
Combicontroll 8000 Spezial ; Pan International (ID = 2042867) Radio
Use red slider bar for more.
Combicontroll 8000 Spezial ; Pan International (ID = 1004996) Radio
Pan International: Combicontroll 8000 Spezial [Radio] ID = 1004996 311x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model Combicontroll 8000 Spezial, Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg:
Ebay auction frankbiker2011 160594576271

Country:  Germany
Manufacturer / Brand:  Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: Combicontroll 8000 Spezial - Pan International GmbH, Pan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 96 x 206 x 53 mm / 3.8 x 8.1 x 2.1 inch

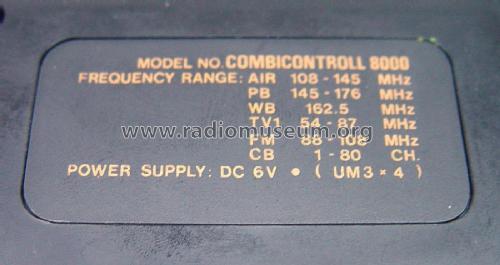

Notes Frequenzbereich: CB-Funk 80 Kanäle AM/FM wahlweise
TV1-54-80 MHz
UKW: 88-108 MHz
Flugfunk: 108-136 MHz
Amateurfunk, Flugfunk, Kommerzialfunk von 109-174 MHz
Fitted with: 18 Transistors, 15 Diodes,2 special IC
Telescopical antenna is built-in, grip is included.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Collectors' prices
Literature/Schematics (1) Pan International FTZ und Export- Geräte- Katalog -3-86

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg
Here you find 39 models, 33 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
