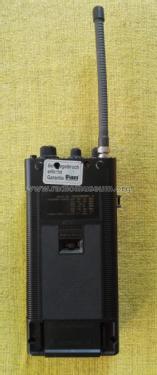

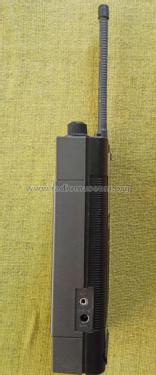

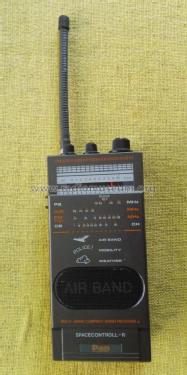

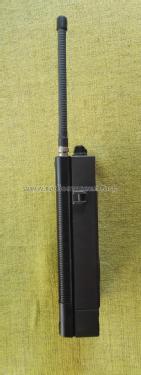

Spacecontroll-R Multi-Band Compact Radio Receiver

Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg

Data
Forum
Pictures
Collections

  • Year
  • 1986 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 355715

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1.5 / DC 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Spacecontroll-R Multi-Band Compact Radio Receiver - Pan International GmbH, Pan
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 95 x 205 x 45 mm / 3.7 x 8.1 x 1.8 inch
  • Notes

  • Multiband-Empfänger, Wellenbereiche:

    - AIR 108 - 145 MHz
    - PB  145 - 176 MHz
    - WB  162,5 MHz
    - TV1  54 - 87 MHz
    - FM  88 - 108 MHz
    - CB 1 - 80 CH

    Wendelantenne. Siehe auch Pan Spacecontroll-T mit Teleskopantenne.

  • Author
  • Model page created by Ivan Notev. See "Data change" for further contributors.
