Regenerative Radio Receiver Junior
Paramount Radio Co. Inc.; Saint Louis, Missouri
- Country
- United States of America (USA)
- Manufacturer / Brand
- Paramount Radio Co. Inc.; Saint Louis, Missouri
- Year
- 1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220940
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Regenerative Radio Receiver Junior - Paramount Radio Co. Inc.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 13 x 11 x 7.5 inch / 330 x 279 x 191 mm
- Notes

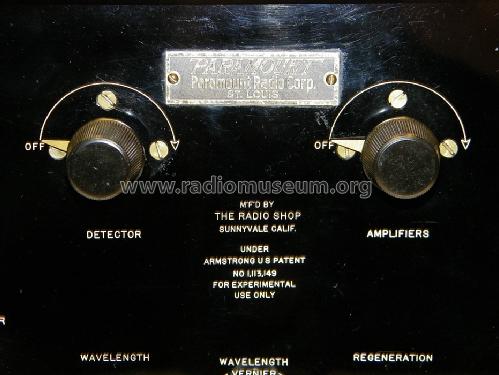

- Built for the Paramount Radio Corp. by The Radio Shop in Sunnyvale, CA. The Paramount "Junior" was a re-badged Radio Shop Echophone Model A Standard. Wavelength range 150 to 650 Meters.
- Price in first year of sale
- 133.00 USD
- Source of data

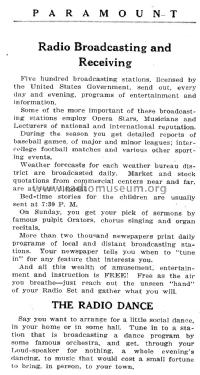

- - - Manufacturers Literature
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
