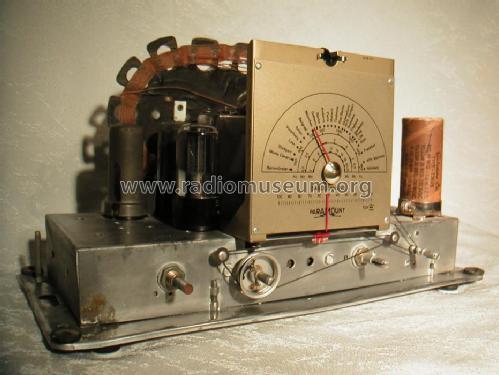

EX102 ; Paramount Radio (ID = 107348) Radio EX102 ; Paramount Radio (ID = 107349) Radio
EX102 ; Paramount Radio (ID = 107350) Radio
Use red slider bar for more.
EX102 ; Paramount Radio (ID = 107348) Radio
Paramount Radio: EX102 [Radio] ID = 107348 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model EX102 Export, Paramount Radio Corporation; Newark, NJ:
Paramount EX-102

Country:  United States of America (USA)
Manufacturer / Brand:  Paramount Radio Corporation; Newark, NJ
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SG7 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EX102 [Export] - Paramount Radio Corporation;
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 355 x 210 x 150 mm / 14 x 8.3 x 5.9 inch
Notes

Exportmodell Europa des Echophone EC-112.

Net weight (2.2 lb = 1 kg) 8 lb 0 oz (8 lb) / 3.632 kg
Source of data -- Collector info (Sammler)

Model page created by Hansjörg Nipp. See "Data change" for further contributors.
