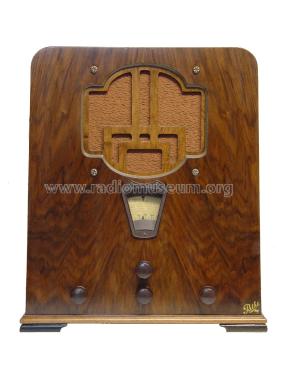

Pathé Radio, Pathé: 64 Ch= 633W [Radio] ID = 2386401 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model 64 Ch= 633W, Pathé Radio, Pathé Frères (Pathéphone); Paris

Country:  France
Manufacturer / Brand:  Pathé Radio, Pathé Frères (Pathéphone); Paris
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 35 24 35 56 47 80
Semiconductors (the count is only for transistors) Westector
Main principle Superheterodyne (common); ZF/IF 128 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 130; 150; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23 cm = 9.1 inch
Power out
from Radiomuseum.org Model: 64 Ch= 633W - Pathé Radio, Pathé Frères Path
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 420 x 480 x 280 mm / 16.5 x 18.9 x 11 inch
Notes

2 gammes d'ondes PO 200 à 570 m, GO 900 à 2000m. Détection par élément Westector (oxyde du cuivre). Réglage de tonalité. Anti-fading. Prise pick-up.

Équvalent au Marconi Six.

Price in first year of sale 1'950.00 FRF
External source of data Serge Laffont/Martin Renoth

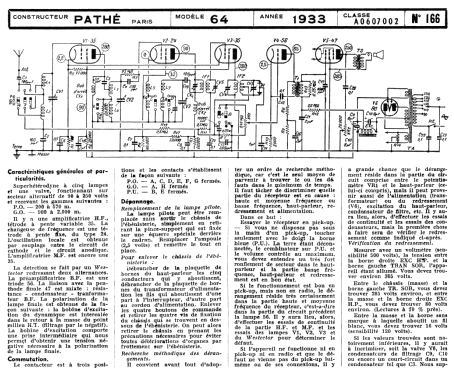

Literature/Schematics (1) Schémathèque Toute la Radio (STR) (No. 166)
Literature/Schematics (2) -- Original prospect or advert (Publicité 1933)
Literature/Schematics (3) Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 244)


All listed radios etc. from Pathé Radio, Pathé Frères (Pathéphone); Paris
Here you find 126 models, 108 with images and 33 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Pathé Radio, Pathé: 64 Ch= 633W
Threads: 1 | Posts: 1
Hits: 455     Replies: 0
RADIO PATHE mod. 64 - ERRORI SULLO SCHEMA ELETTRICO
Gianfranco Mischis
29.Oct.17
  1

QUI SONO VISIBILI I TRE ERRORI RISCONTRATI DURANTE LA MIA MESSA A PUNTO

DELL' APPARECCHIO.



-  UN COLLEGAMENTO FASULLO CON L' ANODICA



-  UNA MANCATA MESSA A MASSA DELLE DUE SEZIONI DEL VARIABILE E DEL GRUPPO

 AMPLI E OSCILLATORE



-  IL CONDENSATORE LIVELLAMENTO DEL C.A.V. CHE NORMALMENTE E' DI 100000pF

 E NON DI 100 pF
