65 Ch= 633; Pathé Radio, Pathé (ID = 2361703) Radio
Pathé Radio, Pathé: 65 Ch= 633 [Radio] ID = 2361703 1400x1729
Select picture or schematic to display from thumbnails on the right and click for download.

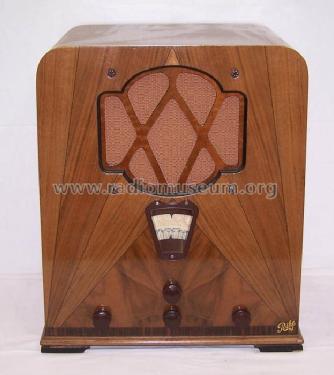

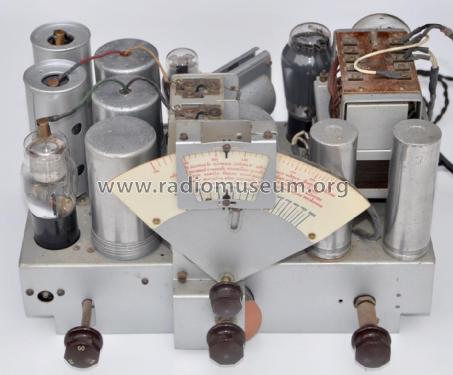

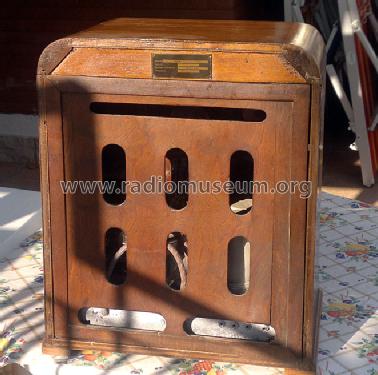

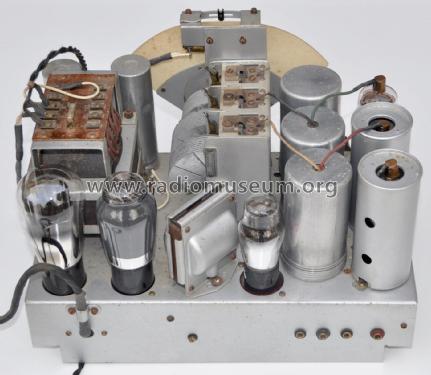

For model 65 Ch= 633, Pathé Radio, Pathé Frères (Pathéphone); Paris:
Tissu remplacé

Country:  France
Manufacturer / Brand:  Pathé Radio, Pathé Frères (Pathéphone); Paris
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 35 24 35 56 47 80
Semiconductors (the count is only for transistors) Westector
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 90-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 65 Ch= 633 - Pathé Radio, Pathé Frères Path
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 415 x 480 x 275 mm / 16.3 x 18.9 x 10.8 inch
Notes

Détection par élément Westector.

Price in first year of sale 1'750.00 FRF
Mentioned in -- Original prospect or advert (Le Journal, 13.10.1934)

Model page created by Didier Tholomier. See "Data change" for further contributors.



All listed radios etc. from Pathé Radio, Pathé Frères (Pathéphone); Paris
Here you find 126 models, 108 with images and 33 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Pathé Radio, Pathé: 65 Ch= 633
Threads: 1 | Posts: 1
Hits: 1754     Replies: 0
pathe: Esquema radio Pathe 65
Salvador Saura-Lopez
19.Jun.07
  1

El esquema de la radio Pathé 65 es el mismo que el del modelo 64, que pueden descargar en esta misma web.
