VSM 326 Ch= G-109

VSM 326 Ch= G-109; Pathé-Marconi, Les (ID = 1858315) Radio VSM 326 Ch= G-109; Pathé-Marconi, Les (ID = 1858317) Radio

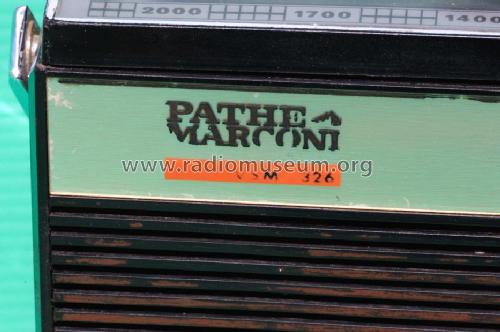

VSM 326 Ch= G-109; Pathé-Marconi, Les (ID = 1858318) Radio
Use red slider bar for more.
VSM 326 Ch= G-109; Pathé-Marconi, Les (ID = 1858315) Radio
Pathé-Marconi, Les: VSM 326 Ch= G-109 [Radio] ID = 1858315 933x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model VSM 326 Ch= G-109, Pathé-Marconi, Les IME (I.M.E.), La Voix de son Maître; Paris

Country:  France
Manufacturer / Brand:  Pathé-Marconi, Les IME (I.M.E.), La Voix de son Maître; Paris
alternative name

La Voix de son Maître
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: BF233 BF233 BF233 TAA611
Main principle Superheterodyne (common); ZF/IF 480 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.45 W (unknown quality)
from Radiomuseum.org Model: VSM 326 Ch= G-109 - Pathé-Marconi, Les IME I.M.E.,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 255 x 155 x 70 mm / 10 x 6.1 x 2.8 inch
Notes

3 stations préréglées.

Clavier 6 touches.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
