LCR Multimeter 5105N

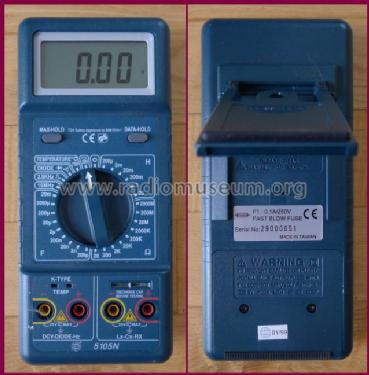

LCR Multimeter 5105N; PeakTech GmbH, Heinz (ID = 1661953) Equipment LCR Multimeter 5105N; PeakTech GmbH, Heinz (ID = 1661955) Equipment
LCR Multimeter 5105N; PeakTech GmbH, Heinz (ID = 1661957) Equipment LCR Multimeter 5105N; PeakTech GmbH, Heinz (ID = 1895395) Equipment
Use red slider bar for more.

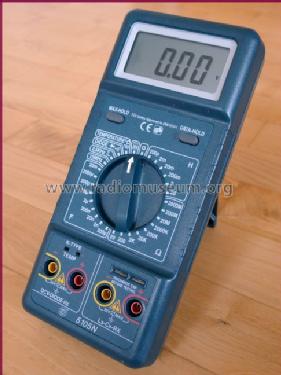

LCR Multimeter 5105N; PeakTech GmbH, Heinz (ID = 1661953) Equipment
PeakTech GmbH, Heinz: LCR Multimeter 5105N [Equipment] ID = 1661953 487x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCR Multimeter 5105N, PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg

Country:  Germany
Manufacturer / Brand:  PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg
Year: 1999 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: LCR Multimeter 5105N - PeakTech GmbH, Heinz-Günther
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 195 x 40 mm / 3.3 x 7.7 x 1.6 inch
Notes

LCR Multimeter 5105N
L:
200μH-20H,
C: 200pF-20µF,
R: 20Ω-2GΩ
f: till 15MHz.
Temperature till 750°C,   20V DC voltage,
diode test, 2.5 kHz square output 8V peak-peak.

Net weight (2.2 lb = 1 kg) 0.290 kg / 0 lb 10.2 oz (0.639 lb)
Price in first year of sale 90.00 euro

Model page created by Rudolf Nemeth. See "Data change" for further contributors.
