Vielfachmessgerät Exacta 5-20

Vielfachmessgerät Exacta 5-20; PeakTech GmbH, Heinz (ID = 2361792) Equipment Vielfachmessgerät Exacta 5-20; PeakTech GmbH, Heinz (ID = 2361793) Equipment

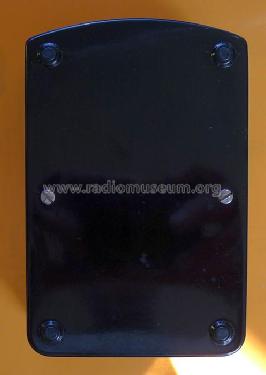

Vielfachmessgerät Exacta 5-20; PeakTech GmbH, Heinz (ID = 2361794) Equipment Vielfachmessgerät Exacta 5-20; PeakTech GmbH, Heinz (ID = 2361795) Equipment
Use red slider bar for more.
Vielfachmessgerät Exacta 5-20; PeakTech GmbH, Heinz (ID = 2361792) Equipment
PeakTech GmbH, Heinz: Vielfachmessgerät Exacta 5-20 [Equipment] ID = 2361792 726x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vielfachmessgerät Exacta 5-20, PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg

Country:  Germany
Manufacturer / Brand:  PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg
Year: 1965 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Vielfachmessgerät Exacta 5-20 - PeakTech GmbH, Heinz-Günther
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 155 x 50 mm / 4.3 x 6.1 x 2 inch
Notes

Exacta 5-20: DC 20 kΩ/V, AC 10 kΩ/V.
Ähnlicher Typ: Exacta 3-30 mit größerem Ri.

Net weight (2.2 lb = 1 kg) 0.375 kg / 0 lb 13.2 oz (0.826 lb)

Model page created by Rudolf Nemeth. See "Data change" for further contributors.
