• Country
• United States of America (USA)

• Manufacturer / Brand
• Peavey Electronics, Meridian - Mississippi

• Year
• 1994 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 278913

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 500 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

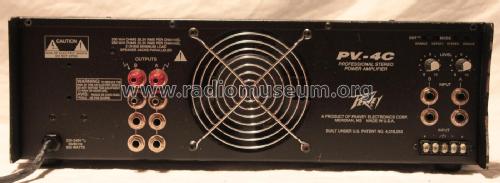

• Model: Professional Stereo Power Amplifier PV-4C - Peavey Electronics, Meridian

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 483 x 133 x 229 mm / 19 x 5.2 x 9 inch

• Notes
• Power output:
  120 W per channel into 8 Ohm (stereo),
  420 W into 8 Ohm(mono)
  200 W per channel into 4 Ohm (stereo)
  250 W per channel into 2 Ohm (stereo)
  mininum load 2 Ohm

  Frequency response: 20Hz to 20kHz

  Total harmonic distortion: 0.1%

  Damping factor: 300

  Input sensitivity: 1V

  Signal to noise ratio: 100dBf


• Net weight (2.2 lb = 1 kg)
• 13.6 kg / 29 lb 15.3 oz (29.956 lb)

• Author
• Model page created by Bartosz Szwed. See "Data change" for further contributors.
