41-8TM-360

41-8TM-360 ; JCPenney, Penney's, (ID = 2333308) Radio 41-8TM-360 ; JCPenney, Penney's, (ID = 2333313) Radio
41-8TM-360 ; JCPenney, Penney's, (ID = 2333312) Radio 41-8TM-360 ; JCPenney, Penney's, (ID = 2333309) Radio
41-8TM-360 ; JCPenney, Penney's, (ID = 2333315) Radio 41-8TM-360 ; JCPenney, Penney's, (ID = 2333310) Radio
41-8TM-360 ; JCPenney, Penney's, (ID = 2231625) Radio 41-8TM-360 ; JCPenney, Penney's, (ID = 681995) Radio
41-8TM-360 ; JCPenney, Penney's, (ID = 681992) Radio 41-8TM-360 ; JCPenney, Penney's, (ID = 681991) Radio
Use red slider bar for more.
41-8TM-360 ; JCPenney, Penney's, (ID = 2333308) Radio
JCPenney, Penney's,: 41-8TM-360 [Radio] ID = 2333308 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 41-8TM-360, JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out
from Radiomuseum.org Model: 41-8TM-360 - JCPenney, Penney's, J.C.Penney
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.5 x 3.5 x 1.5 inch / 165 x 89 x 38 mm
Notes

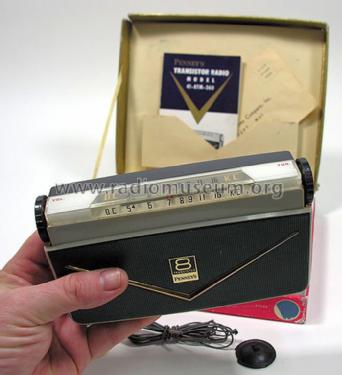

JC Penney's 41-8TM-360 (8TM-360) 8 Transistor;
Three jack terminals for 2 x earphones & ext. antenna?, sold in box with leather case, earphone, earphone case, leather strap, made in Japan. by Toshiba.

US Civil Defense marks on station plate.  Similar to Toshiba 8TM-294

Collectors' prices
Literature/Schematics (1) Collector's Guide To TrR1 Bunis trans.94 (Model info on page 198)

Model page created by a member from A. See "Data change" for further contributors.
