MCS Series Stereo Receiver 3253 Catalog No.: 853-1162

MCS Series Stereo Receiver 3253 Catalog No.: 853-1162; JCPenney, Penney's, (ID = 1926184) Radio

MCS Series Stereo Receiver 3253 Catalog No.: 853-1162; JCPenney, Penney's, (ID = 1926185) Radio
MCS Series Stereo Receiver 3253 Catalog No.: 853-1162; JCPenney, Penney's, (ID = 1926178) Radio MCS Series Stereo Receiver 3253 Catalog No.: 853-1162; JCPenney, Penney's, (ID = 1926179) Radio
MCS Series Stereo Receiver 3253 Catalog No.: 853-1162; JCPenney, Penney's, (ID = 1926183) Radio
Use red slider bar for more.

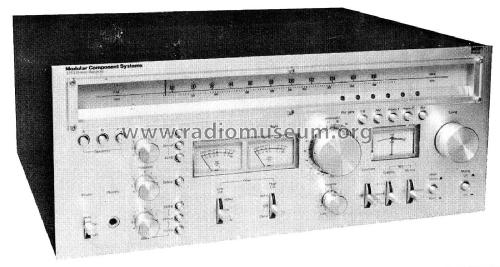

MCS Series Stereo Receiver 3253 Catalog No.: 853-1162; JCPenney, Penney's, (ID = 1926178) Radio
JCPenney, Penney's,: MCS Series Stereo Receiver 3253 Catalog No.: 853-1162 [Radio] ID = 1926178 1400x749
Select picture or schematic to display from thumbnails on the right and click for download.
For model MCS Series Stereo Receiver 3253 Catalog No.: 853-1162, JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY:
Owners Manual

Country:  United States of America (USA)
Manufacturer / Brand:  JCPenney, Penney's, J.C.Penney, Penncrest (brand); New York, NY
Year: 1979 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 110 W (undistorted)
from Radiomuseum.org Model: MCS Series Stereo Receiver 3253 Catalog No.: 853-1162 - JCPenney, Penney's, J.C.Penney
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 18.5 x 7.8125 x 15.375 inch / 470 x 198 x 391 mm
Notes

J.C. Penney Modular Component Systems Stereo Receiver Model 3253.
Catalog No.: 853-1162
Product Service No.:683-3253-00
Power Consumption 160Watts.
Made in Japan.

Tuning range: FM, MW
Power output: 55 watts per channel into 8Ω (stereo)
Frequency response: 7Hz to 50kHz
Total harmonic distortion: 0.5%
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 75dB (MM), 100dB (line)
Speakers A, B, A+B
Inputs: Phono1, Phono2, AUX
Tape Monitor, Tape Dubbing
Bass- & Treble Control
Loudness
Filters: High Cut, Low Cut


Net weight (2.2 lb = 1 kg) 31.5 lb (31 lb 8 oz) / 14.301 kg
Mentioned in - - Manufacturers Literature (Owners Handbook)
