Transformateur Tesla - loose coupler 1052/1054
Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
- Country
- France
- Manufacturer / Brand
- Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
- Year
- 1920–1923
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 196410
Collection privée (réf.: 965)
Collection privée (réf.: 965)
From a 1920 Péricaud catalogue.
Cat. Pericaud 15.11.1922
Manufacturer documentation
Manufacturer documentation
Manufacturer documentation
Manufacturer documentation
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Transformateur Tesla - loose coupler 1052/1054 - Péricaud, G. et A. Péricaud
- Dimensions (WHD)
- 180 x 110 x 110 mm / 7.1 x 4.3 x 4.3 inch
- Notes
-
Une bobine à l'intérieur de laquelle s'oriente une seconde dite d'accouplement.
Joues acajou verni. Dimensions bobines non dévelopées.
Loose Coupler.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Price in first year of sale
- 125.00 FRF
- Source of data
- -- Original prospect or advert
- Mentioned in

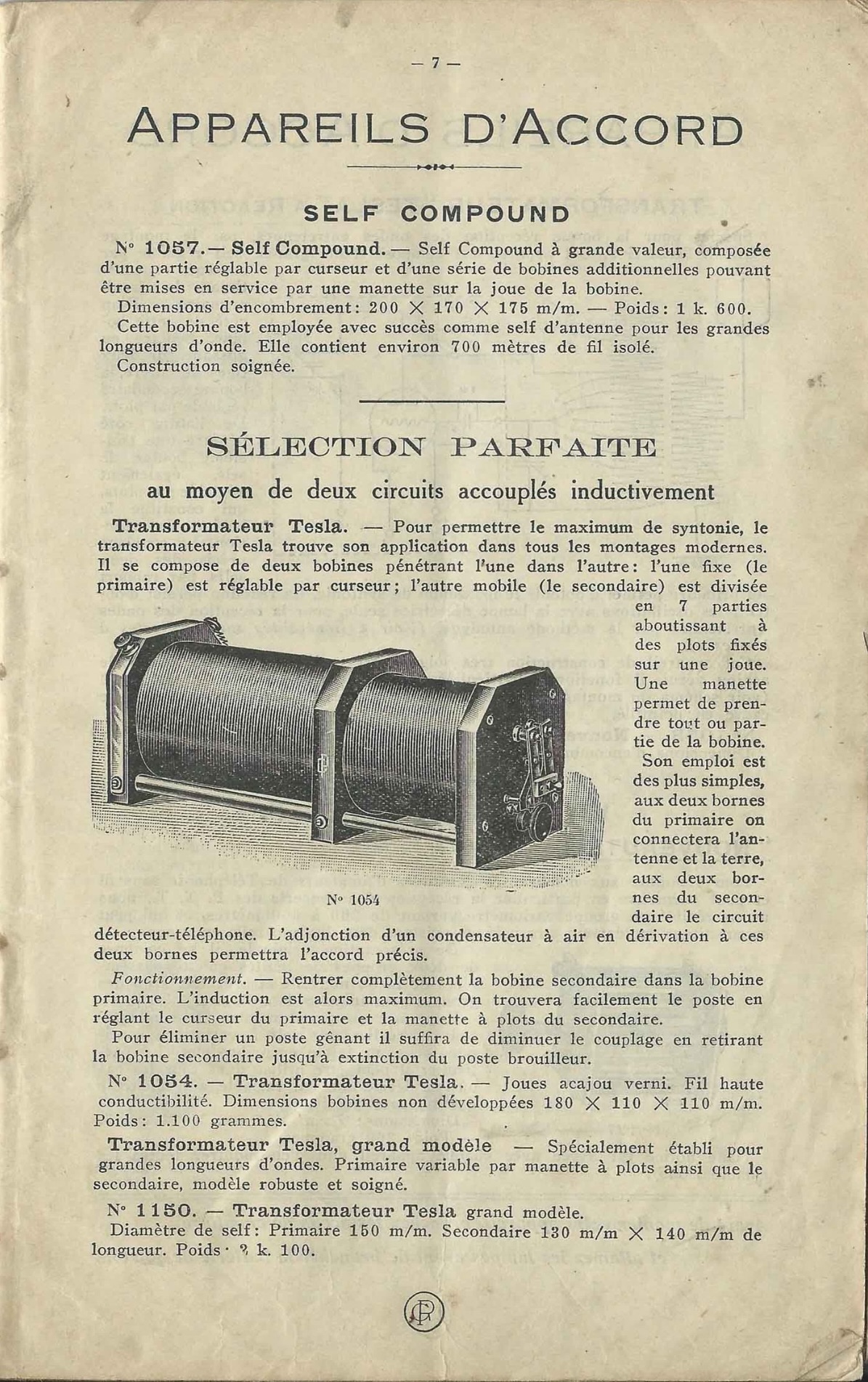

- - - Manufacturers Literature (T.S.F. G. Péricaud, édition 1923, page 7)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
- Other Models
-
Here you find 173 models, 145 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
Collections
The model Transformateur Tesla - loose coupler is part of the collections of the following members.
Forum contributions about this model: Péricaud, G. et A. P: Transformateur Tesla - loose coupler 1052/1054
Threads: 1 | Posts: 1
A Pericaud 1920 catalog shows models 1052 and 1054 which by 1923 have changed. The 1052 becomes the 1054.
Attachments
- Pericaud 1920 catalog p.5 (655 KB)
- Page 5 from a Pericaud 1920 catalog showing models 1052 and 1054. (431 KB)
- Pericaud 1923 catalog p. 5 showing the model that was 1052 in 1920 is now 1054. (672 KB)
David Smith, 31.Mar.26
