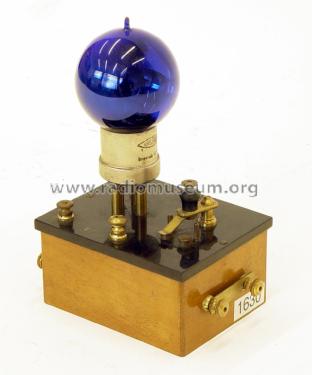

Détecteur à 1 Lampe No. 1012
Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
- Country
- France
- Manufacturer / Brand
- Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
- Year
- 1920
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 196400
- Number of Tubes
- 1
- Valves / Tubes
- TM
- Main principle
- Detector with Vacuum Tube (Valve), no tuner
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 4 & 40 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Détecteur à 1 Lampe No. 1012 - Péricaud, G. et A. Péricaud
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 100 x 70 x 80 mm / 3.9 x 2.8 x 3.1 inch
- Notes
-
Tube detector (audion?).
- Net weight (2.2 lb = 1 kg)
- 0.250 kg / 0 lb 8.8 oz (0.551 lb)
- Price in first year of sale
- 60.00 FRF
- Source of data
- -- Original prospect or advert
- Mentioned in
- Cat. Pericaud 15.11.1922
- Literature/Schematics (2)
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 245)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
