Ampli-Vox Roving Rostrum S110 & S120
Perma-Power Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Perma-Power Co.; Chicago (IL)
- Year
- 1958 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 306790
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 10 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Ampli-Vox Roving Rostrum S110 & S120 - Perma-Power Co.; Chicago IL
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.5 x 9.5 x 17.5 inch / 419 x 241 x 445 mm
- Notes
-

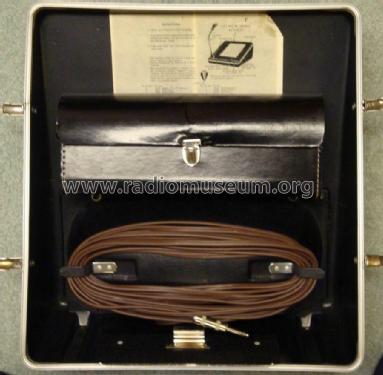

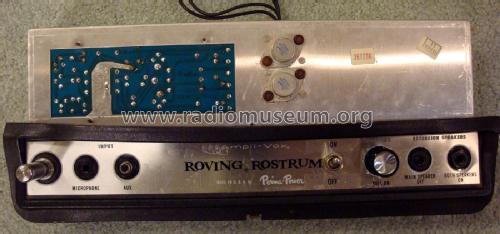

Manufactured by Ampli-Vox / Perma Power, Roving Rostrum model. Battery powered portable public address system. Two 6 inch by 9 inch PM speakers. One speaker is in the console, a second to be used as an extension speaker, a removable part of the unit.
- Net weight (2.2 lb = 1 kg)
- 21 lb 0 oz (21 lb) / 9.534 kg
- Author
- Model page created by Neil Van Dusen. See "Data change" for further contributors.
