Detector and Two-Stage Amplifier Type H.O.C.

Perth Amboy Electric Co.; Perth Amboy, New Jersey

Data
Forum
Pictures
Collections

  • Year
  • 1921 ?
  • Category
  • Radio module pre 1926 (not a part, not a key)
  • Radiomuseum.org ID
  • 206192

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Detector with Vacuum Tube (Valve), no tuner; 2 AF stage(s)
  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Detector and Two-Stage Amplifier Type H.O.C. - Perth Amboy Electric Co.;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 11.5 x 7.5 x 8 inch / 292 x 191 x 203 mm
  • Notes
  • Perth Amboy Electric Company Criterion Type H.O.C. Vacuum tube detector and Two-Stage Audio Amplifier. This well made unit matched up to the Adams-Morgan Paragon RA-10 receiver and was an obvious attempt to capture some of the sales of the Adams-Morgan DA-2 D/A.
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Detector and Two-Stage Amplifier is part of the collections of the following members.

 Forum

Forum contributions about this model: Perth Amboy Electric: Detector and Two-Stage Amplifier Type H.O.C.

Threads: 1 | Posts: 1

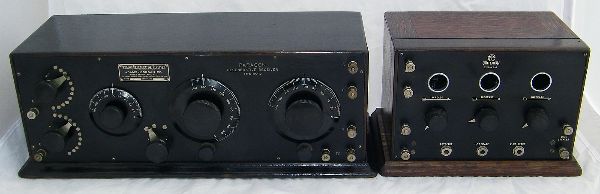

The Perth Amboy Electric Co. Type H.O.C. Detector/2-Stage Amplifier apparently was designed with the Adams Morgan Paragon RA-10 Regenerative Receiver in mind. The styling of the caabinet closely resembles the Paragon line.

The binding postof the Perth Amboy D/A also matched up exactly with the Paragon RA-10

The terms Plate and Wing were used for the same terminal. The wing was what the plate on the early Audions was called.

Alan Larsen, 30.Aug.15
