Pobeda {Победа}

Pobeda {Победа} ; Petropavlovsk Radio (ID = 315368) Radio
Pobeda {Победа} ; Petropavlovsk Radio (ID = 315369) Radio Pobeda {Победа} ; Petropavlovsk Radio (ID = 315371) Radio
Pobeda {Победа} ; Petropavlovsk Radio (ID = 315372) Radio Pobeda {Победа} ; Petropavlovsk Radio (ID = 315373) Radio
Pobeda {Победа} ; Petropavlovsk Radio (ID = 2020530) Radio Pobeda {Победа} ; Petropavlovsk Radio (ID = 2020531) Radio
Pobeda {Победа} ; Petropavlovsk Radio (ID = 2020532) Radio
Use red slider bar for more.
Pobeda {Победа} ; Petropavlovsk Radio (ID = 315369) Radio

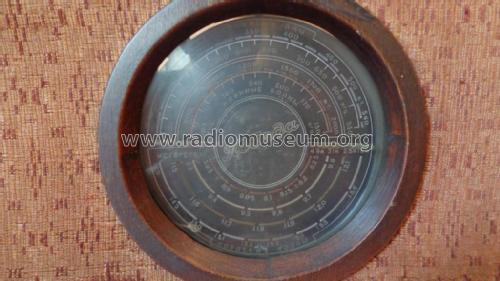

Petropavlovsk Radio: Pobeda {Победа} [Radio] ID = 315369 624x468
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pobeda {Победа}, Petropavlovsk Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Petropavlovsk Radio Works
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6К7 6Л7 6Ж7 6К7 6Е5 6К7 6Х6 6Ж7 6П3 or 6Л6С 5Ц4С
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Pobeda {Победа} - Petropavlovsk Radio Works
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes First in SU after WW2 hight class radio set. Very rare - about 500 produced total.
"Pobieda" translate - Victory.
Mentioned in -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Petropavlovsk Radio Works
Here you find 10 models, 10 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
