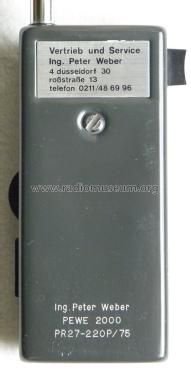

Handfunkgerät PEWE 2000
Pewe, Ing. Peter Weber, Düsseldorf
- Country
- Germany
- Manufacturer / Brand
- Pewe, Ing. Peter Weber, Düsseldorf
- Year
- 1975
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 237922
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Handfunkgerät PEWE 2000 - Pewe, Ing. Peter Weber,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 55 x 120 x 30 mm / 2.2 x 4.7 x 1.2 inch
- Notes
-
Funksprechgerät für den 27 MHz-CB-Bereich. Ein Kanal, Amplitudenmodulation.
FTZ-Nr. PR27-220P/75
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
