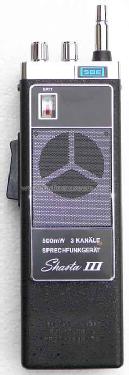

Sprechfunkgerät Shasta III

Pewe, Ing. Peter Weber, Düsseldorf

  • Year
  • 1976
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 257039

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage and/or dry batteries / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sprechfunkgerät Shasta III - Pewe, Ing. Peter Weber,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 75 x 244 x 55 mm / 3 x 9.6 x 2.2 inch
  • Notes
  • Handfunkgerät, 3 Kanäle im 27 MHz-CB-Band, Steckquarze, Amplitudenmodulation.

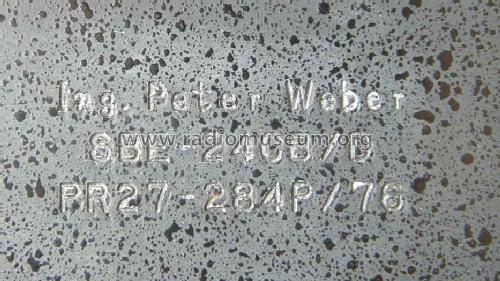

    FTZ-Nr. PR27-284P/76
    Hergestellt von SBE, USA


  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
