Antenna Transfer Unit AR-1
PH Electronics Inc., P & H; Lafayette (IN)
- Country
- United States of America (USA)
- Manufacturer / Brand
- PH Electronics Inc., P & H; Lafayette (IN)
- Year
- 1962
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 288834

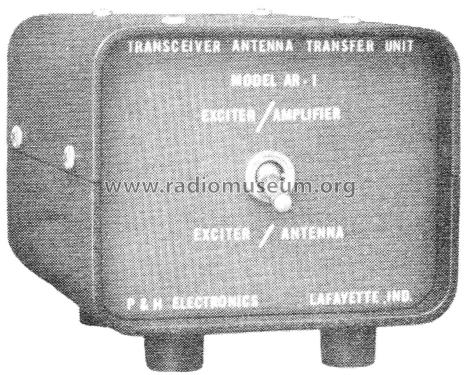

QST February 1963 page 132

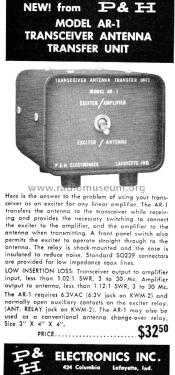

QST February 1963 page 132
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 6.3 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Antenna Transfer Unit AR-1 - PH Electronics Inc., P & H;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 4 x 3 x 4 inch / 102 x 76 x 102 mm
- Notes
-
The P&H Electronics AR-1 Antenna Transfer Unit will transfer the antenna to the transceiver when receiving and to the amplifier when transmitting, when the transceiver is being used as an exciter for the transmitter. The unit requires 6.3 VAC.
- Price in first year of sale
- 32.50 USD
- Mentioned in
- QST (February 1963 page 132)
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
