L3G01T
Use red slider bar for more.

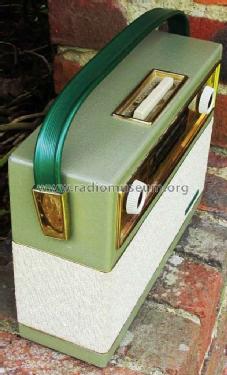

Philips Electrical,: L3G01T [Radio] ID = 361644 900x650
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1960 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: OC44 OC45 OC45 OC78D OC78 OC78 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm |
| Power out | |
| from Radiomuseum.org | Model: L3G01T - Philips Electrical, Lamps, |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 10.5 x 7.38 x 3.25 inch / 267 x 187 x 83 mm |
| Notes | Socket for external aerial. Chassis similar to model L3G91T. |
| Net weight (2.2 lb = 1 kg) | 1.7 kg / 3 lb 11.9 oz (3.744 lb) |
| Source of data | Radio And Television Servicing books (R&TVS) |
