10L43U

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 213214

• Picture

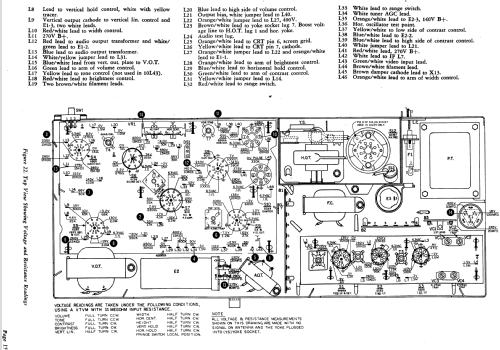

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6X8 6BC8 6AF4A or 6AF4B 6AM8A or 6AM8 6DE6 6DE6 6BQ5 6DR7 6CS6 6U8 or 6U8A or 6EA8 6CG7 6AW8A 6DA4 6DQ6A 1G3GT 17DAP4 or 17DRP4 or 21EVP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 10L43U - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Notes

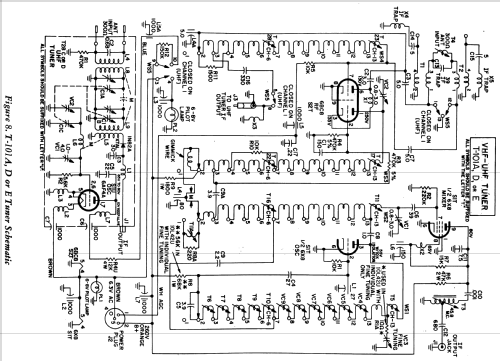

• The Philco 10L43U is a chassis for 17" or 21" b/w TV's with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Used in various "H" line Philco TV's. Uses VHF tuner T-101D, UHF tuner T-28C and picture tube 17DAP4 or 17DRP4 or 21EVP4. This chassis is similar to chassis 10L41U except uses Qty(2) silicon rectifiers in place of the 5U4GB tube and was also available with 17" picture tubes.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
