111A Highboy

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138260

• Picture

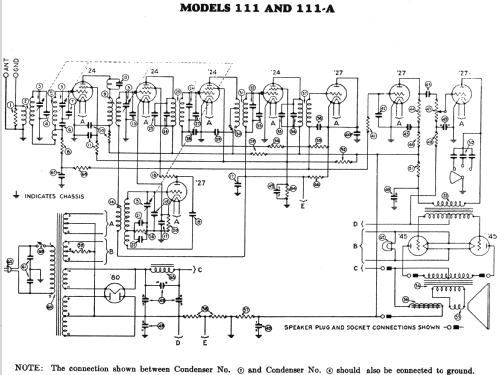

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 24 24 27 24 24 27 27 27 45 45 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 111A Highboy - Philco, Philadelphia Stg. Batt

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• Models 111 and 111A were Philco's first superheterodyne radios and were available in a lowboy or a highboy cabinet. Model 111 is for 50-60 Hz and model 111A is for 25-60 Hz.

• Source of data
• Philco Radio 1928-1942

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Literature/Schematics (1)

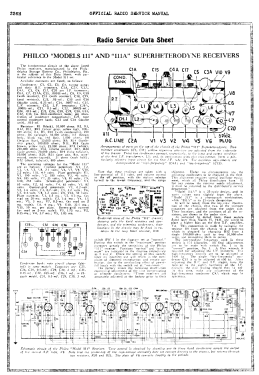

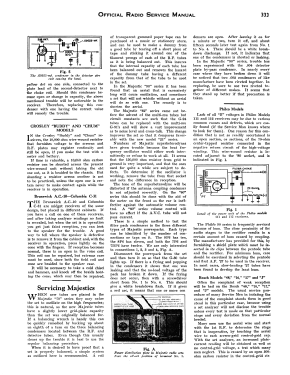

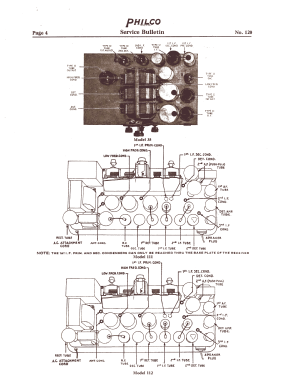

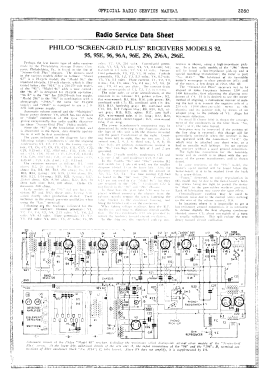

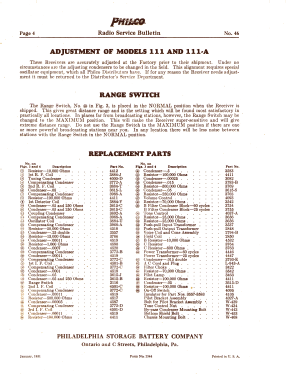

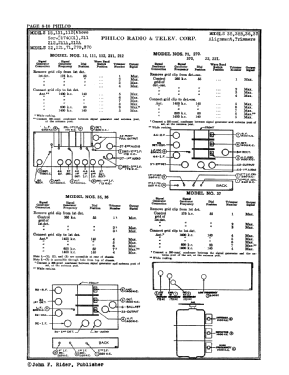

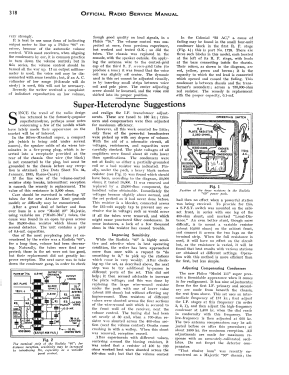

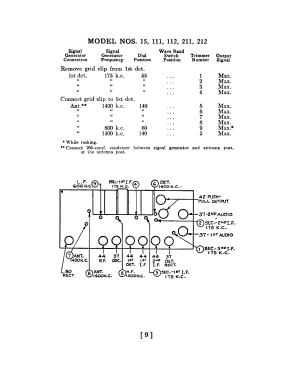

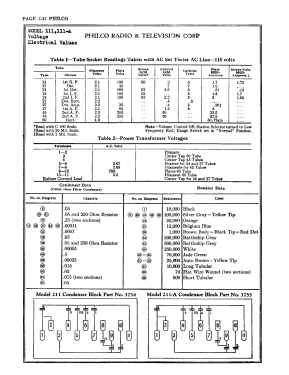

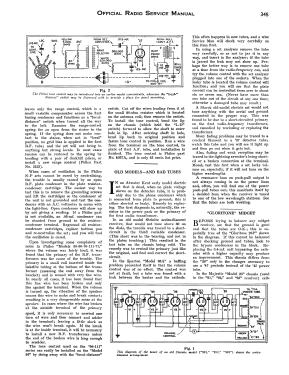

• Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data

• Author
• Model page created by Thomas Albrecht. See "Data change" for further contributors.
