For model 211 Radio-Phonograph, Philco, Philadelphia Stg. Batt. Co.; USA:
Copy from Ebay seller plucksantiques

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 24 24 24 24 27 27 27 27 45 45 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 211 Radio-Phonograph - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with any shape - in general
Notes Model 211 uses the chassis of model 111 (50-60 Hz). Models 211 and 211A are radio-phonograph models that use radio chassis similar to models 111 and 111A. Model 211 is for 50-60 Hz power, and model 211A is for 25-60 Hz power.
Price in first year of sale 272.00 $
External source of data E. Erb 3-907007-36-0

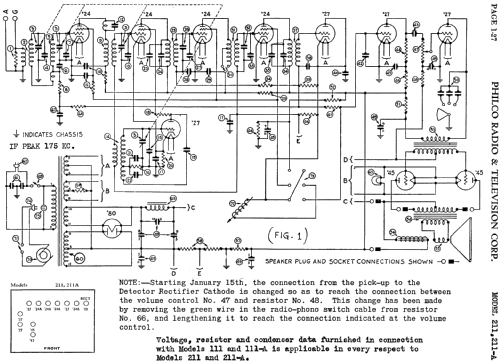

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Philco Radio 1928-1942
