22D4137 Ch= TV-332U

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 278504

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BQ7A 6X8 6CB6 6CB6 6CB6 12BY7 6AU6 6T8 6W6GT 12BR7 12BH7A 12AU7A 6CU6 6AX4GT 1B3GT 5U4G 21ZP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22D4137 Ch= TV-332U - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Philco model 22D4137 is a 21"  b/w TV with US standard VHF tuner channels 2 thru 13 equipped with VHF tuner T-36E , chassis TV-332U and picture tube 21ZP4B.

• Literature/Schematics (1)

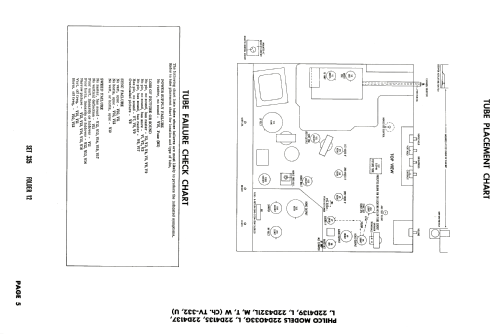

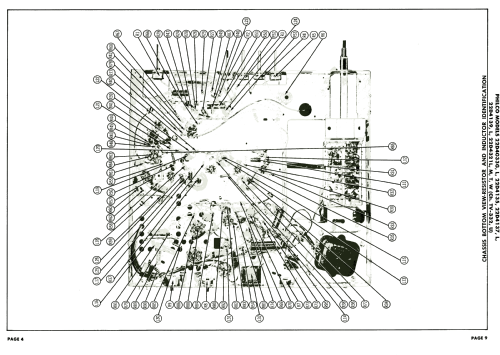

• Photofact Folder, Howard W. SAMS (Set 335 Folder 12 dated 10-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 312 Folder 12-S dated 1956)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
