39-30T

39-30T ; Philco, Philadelphia (ID = 483224) Radio
39-30T ; Philco, Philadelphia (ID = 1716785) Radio 39-30T ; Philco, Philadelphia (ID = 73751) Radio
39-30T ; Philco, Philadelphia (ID = 195488) Radio 39-30T ; Philco, Philadelphia (ID = 777284) Radio
39-30T ; Philco, Philadelphia (ID = 777287) Radio 39-30T ; Philco, Philadelphia (ID = 777288) Radio
39-30T ; Philco, Philadelphia (ID = 1509206) Radio 39-30T ; Philco, Philadelphia (ID = 1509207) Radio
39-30T ; Philco, Philadelphia (ID = 1716786) Radio 39-30T ; Philco, Philadelphia (ID = 1716787) Radio
Use red slider bar for more.
39-30T ; Philco, Philadelphia (ID = 1716785) Radio

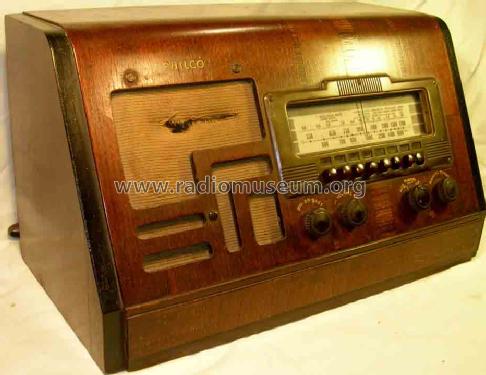

Philco, Philadelphia: 39-30T [Radio] ID = 1716785 933x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model 39-30T, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 78 37 75 41 84
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 39-30T - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

8 station preset push-buttons.

Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Mentioned in Philco Radio 1928-1942
Literature/Schematics (1) Philco dealers promotion radio sales
Literature/Schematics (3) Philco Folder PR671 for 1939.

Model page created by Vitor Oliveira. See "Data change" for further contributors.



All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Here you find 3740 models, 2120 with images and 3137 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
