• Year
  • 1936/1937
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50527

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

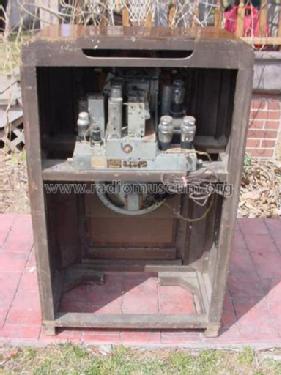

  • Model: 37-10X "Teledial" - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with any shape - in general
  • Notes
  • Model 37-10X has automatic tuning and "magnetic tuning" (automatic frequency control to automatically center the tuning on a station and prevent drift). Chassis codes 121 and 125 differ only in some of the RF circuitry (see schematics). See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

  • Price in first year of sale
  • 125.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Literature/Schematics (1)

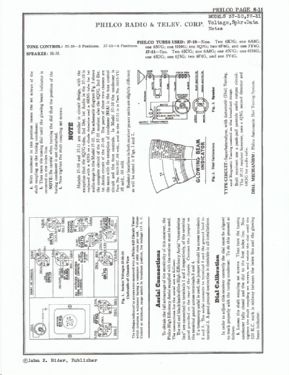

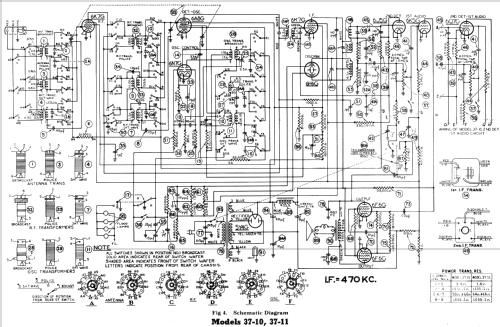

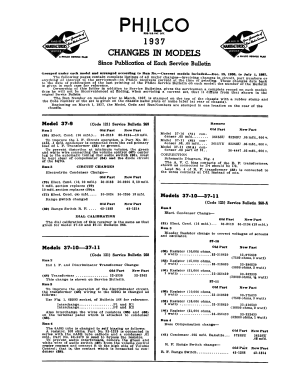

  • -- Schematic (Philco Service Bulletins # 268 and #268A)
