37-611F Late

Philco, Philadelphia Stg. Batt. Co.; USA

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1937
  • Categoría
  • Radio - o Sintonizador pasado WW2
  • Radiomuseum.org ID
  • 147583

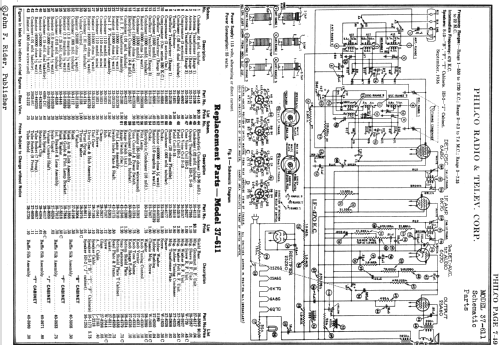

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de valvulas
  • 5
  • Principio principal
  • Superheterodino en general; ZF/IF 470 kHz
  • Gama de ondas
  • OM y dos OC
  • Tensión de funcionamiento
  • Red: Aparato AC/DC. / 115 Volt
  • Altavoz
  • Altavoz electrodinámico (bobina de campo)
  • Material
  • Madera
  • de Radiomuseum.org
  • Modelo: 37-611F [Late] - Philco, Philadelphia Stg. Batt
  • Forma
  • Consola en general
  • Anotaciones
  • The Philco model 37-611 series (1936-37) is the follow-on to the model 611 series (1935-36). Like the earlier 611 series, the 37-611 series uses a 5-tube 3-band AC-DC chassis. The 37-611 chassis is similar to the 37-610 chassis, but with an AC-DC power supply (similar to the relationship between the 610 and 611 chassis of the previous year). Band coverage is BC, 2.3-7.4 MHz, and 7.35-22 MHz.

    The 37-611 series has eight distinct models with different cabinet styles, several of which are shared with the 37-610 series.

    There are two versions of the 37-611B tombstone -- an early version with a shouldered profile, and a late version with a rectangular profile.

    Both the early and late versions of the 37-611T table radio have a rounded left side. The early version has a speaker opening similar to a lower case Greek "sigma" with three horizontal bars in the upper half of the opening, and a round lower portion. The late version is very similar, except that the bars through the speaker opening have a roughly square "S" shape and extend into the lower part of the opening.

    The early version of the 37-611F floor-type console has a tulip design in the speaker opening. The late version of 37-611F has a large rectangular speaker opening with three vertical bars centered in front of the speaker.

    Model 37-611J is another floor-type console, with slightly trapezoidal profile and three vertical bars in front of a small rectangular speaker opening with rounded corners.

    Model 37-611K is the fourth floor-type console in the series, with rounded edges on the front left and right, and vertical and diagonal bars through the speaker opening in a pattern reminiscent of the shaft and feathers of an arrow, pointing downward.
  • Precio durante el primer año
  • 65.00 $
  • Referencia esquema
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Autor
  • Modelo creado por Thomas Albrecht. Ver en "Modificar Ficha" los participantes posteriores.
