37-620B

37-620B ; Philco, Philadelphia (ID = 502939) Radio

37-620B ; Philco, Philadelphia (ID = 502940) Radio
37-620B ; Philco, Philadelphia (ID = 1214480) Radio 37-620B ; Philco, Philadelphia (ID = 503445) Radio
37-620B ; Philco, Philadelphia (ID = 503446) Radio 37-620B ; Philco, Philadelphia (ID = 503447) Radio
37-620B ; Philco, Philadelphia (ID = 503448) Radio 37-620B ; Philco, Philadelphia (ID = 503449) Radio
37-620B ; Philco, Philadelphia (ID = 713764) Radio 37-620B ; Philco, Philadelphia (ID = 713767) Radio
37-620B ; Philco, Philadelphia (ID = 1450382) Radio 37-620B ; Philco, Philadelphia (ID = 1450383) Radio
Use red slider bar for more.
37-620B ; Philco, Philadelphia (ID = 1214480) Radio
Philco, Philadelphia: 37-620B [Radio] ID = 1214480 543x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 37-620B, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K7G 6A8G 6K7G 6Q7G 6F6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 37-620B - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes

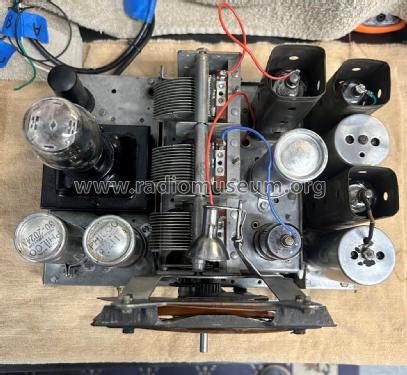

The Philco model 37-620 series (1936-37) is the follow-on to the earlier model 620 series (1935-36). Like the 620 series, the 37-620 series has a 6-tube 3-band chassis, but is updated with octal tubes. Band coverage is BC, 2.3-7.4 MHz, and 7.35-22 MHz. There are two versions of the chassis, marked with code 121 and code 125, with minor circuitry differences between the two (see schematics).

There are four models in the series with different cabinet styles. Model 37-620B is a tombstone with a slightly trapezoidal profile and rounded top corners.
,br/> Model 37-620J is a floor-type console, also with a slightly trapezoidal profile, and three vertical bars in front of the speaker.

Model 37-611K has vertical and diagonal bars in the speaker opening, in a pattern reminiscent of the feathers and shaft of an arrow pointing downward.

Model 37-620CS is Philco's only chairside radio for the 1937 model year. This model has the controls and dial in a recessed area on the top surface of the cabinet.

Stein mentions this model as a  two bands radio.

Price in first year of sale 53.00 $
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Philco Radio 1928-1942
Literature/Schematics (1) Philco Service Bulletins # 250 and # 251A
Literature/Schematics (2) Cathedral & Tombstone Radios (page 196.)
Literature/Schematics (3) Philco Folder No. PR-430 for 1937.

Model page created by Thomas Albrecht. See "Data change" for further contributors.
