37-62T (37-62, 37-62C) Late

Philco, Philadelphia Stg. Batt. Co.; USA

  • Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146564

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 37-62T [Late] - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • The Philco model 37-62 series uses a 5-tube 2-band (BC and 2.3-2.5 MHz) chassis.

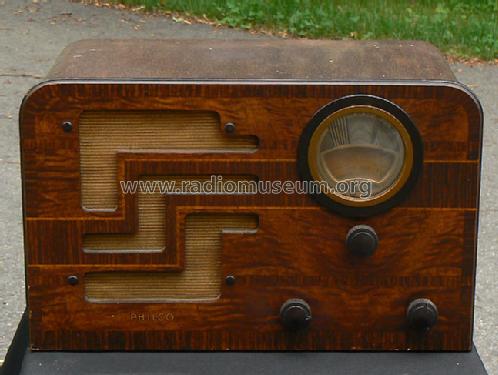

    There are three models in the series with different cabinet styles. The early version of the model 37-62T table radio has three horizontal bars and one diagonal bar through the speaker grill. The late version of 37-62T has two bars through the speaker grill, both with a roughly square "S" shape. Both versions of 37-62T have an artificial "photo finish" wood pattern printed on the front of the cabinet, an approach used on very low cost cabinets.

    Model 37-62F is a floor-type console with a large rectangular speaker grill and three vertical bars in front of the speaker.

    Ramirez's 1993 edition lists only one model (without picture) in the 37-62 series, with the designation 37-62C. The information on his website (in 2009) no longer shows a 37-62C, but lists the three models mentioned above. If a -C model exists, it would be for a compact table cabinet, not really consistent with the size and shape of the 37-62 chassis. It is therefore considered unlikely that 37-62C exists.
  • Price in first year of sale
  • 30.00 $
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Literature/Schematics (1)
  • Philco Service Bulletin # 274
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
