38-39T

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50575

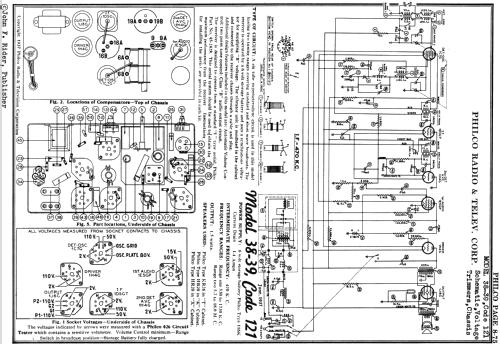

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 38-39T - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • The Philco model 38-39 series uses a 6-tube 2-band chassis powered by a 6-volt storage battery. A vibrator is used to generate B+ voltage.

    There are four individual models in the series with different cabinet styles. Model 38-39T (1937-38) is a table radio. Model 38-39K (1937) is a console with a vertical control panel flush with the front of the cabinet, and a non-inclined speaker grill. Model 38-39F (1937) is another console with a slightly recessed control panel and an inclined sounding board. Model 38-39XF (1938) is a third console design with a sloping control panel.
  • Price in first year of sale
  • 55.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference

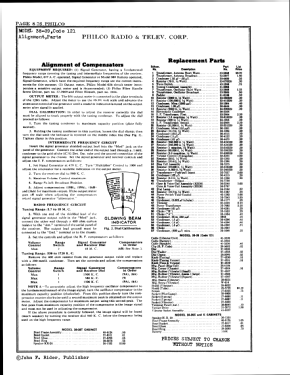

  • Rider's Perpetual, Volume 8 = 1937 and before
