38-4XX ; Philco, Philadelphia (ID = 1181121) Radio
Philco, Philadelphia: 38-4XX [Radio] ID = 1181121 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model 38-4XX, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6U7G 6A8G 6K7G 6J5G 6K5G 6F6G 6F6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 5 W (undistorted)
from Radiomuseum.org Model: 38-4XX - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with any shape - in general
Notes Model 38-4XX has "Cone-Centric Automatic Tuning," a mechanical tuning aid.
Price in first year of sale 100.00 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

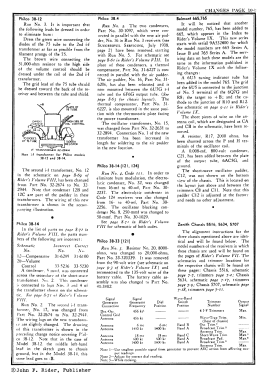

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Philco Radio 1928-1942
Literature/Schematics (1) Pre-War Consoles
