38-7CS ; Philco, Philadelphia (ID = 703129) Radio
Philco, Philadelphia: 38-7CS [Radio] ID = 703129 544x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model 38-7CS, Philco, Philadelphia Stg. Batt. Co.; USA:

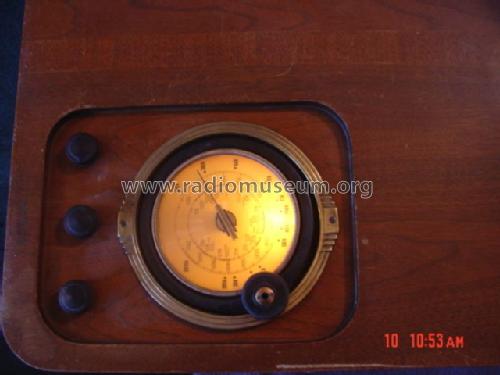

Philco model 38-7CS. Image copy from Ebay seller goodolddaysinc.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7G 6J5G 6K5G 6F6G 5Y4G
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 38-7CS - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console: Chairside Radio.
Notes Model 38-7CS has "Cone-Centric Automatic Tuning," a mechanical tuning aid.
Price in first year of sale 90.00 $
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Philco Radio 1928-1942

Model page created by Thomas Albrecht. See "Data change" for further contributors.
