42-390X ; Philco, Philadelphia (ID = 956538) Radio

42-390X ; Philco, Philadelphia (ID = 2133238) Radio

42-390X ; Philco, Philadelphia (ID = 2133239) Radio

42-390X ; Philco, Philadelphia (ID = 2133240) Radio

42-390X ; Philco, Philadelphia (ID = 2133241) Radio
42-390X ; Philco, Philadelphia (ID = 2340752) Radio 42-390X ; Philco, Philadelphia (ID = 2340753) Radio
42-390X ; Philco, Philadelphia (ID = 1831743) Radio 42-390X ; Philco, Philadelphia (ID = 2114184) Radio
42-390X ; Philco, Philadelphia (ID = 2498327) Radio 42-390X ; Philco, Philadelphia (ID = 2498328) Radio
42-390X ; Philco, Philadelphia (ID = 146073) Radio 42-390X ; Philco, Philadelphia (ID = 146074) Radio
42-390X ; Philco, Philadelphia (ID = 146075) Radio 42-390X ; Philco, Philadelphia (ID = 693448) Radio
Use red slider bar for more.
42-390X ; Philco, Philadelphia (ID = 2340752) Radio
Philco, Philadelphia: 42-390X [Radio] ID = 2340752 1083x1400
Select picture or schematic to display from thumbnails on the right and click for download.

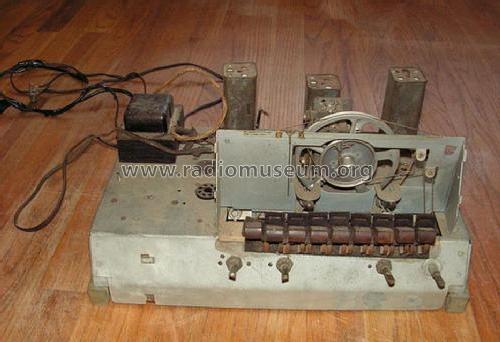

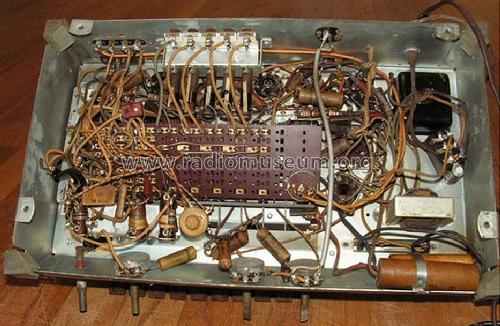

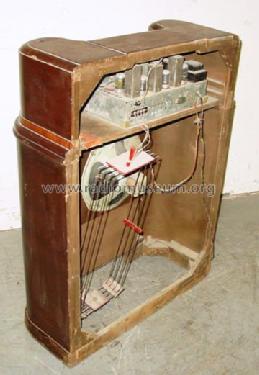

For model 42-390X, Philco, Philadelphia Stg. Batt. Co.; USA:

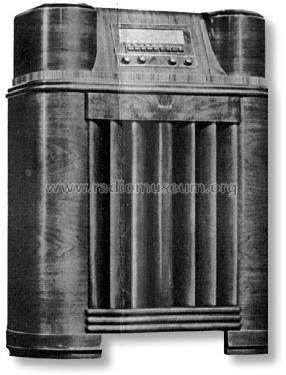

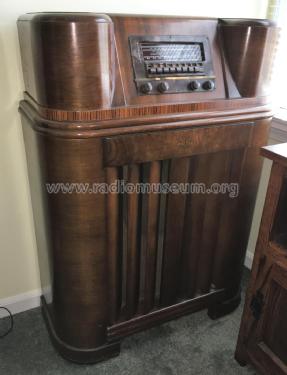

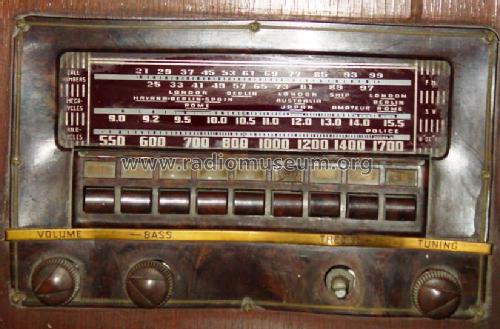

{Philco Model 42-390 front view

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: XXL XXL 7V7 7V7 XXFM 41 41 84
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 42-390X - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 30 x 39.75 x 12.625 inch / 762 x 1010 x 321 mm
Notes

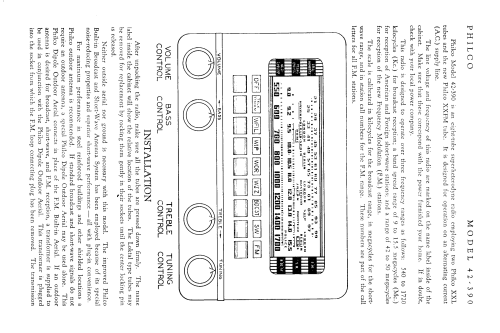

Schematic shows 6X5G as rectifier tube. Has 9 pushbuttons, separate bass and treble controls, two built-in antennas.

In Rider's Perpetual, Volume 14, page 14-42 Philco, under replacement parts; Sch. No. 35 is mislabeled as Resistor.  The part is a Condenser (.05 mfd. 200 volts).

Net weight (2.2 lb = 1 kg) 53 lb 0 oz (53 lb) / 24.062 kg
Price in first year of sale 95.00 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Philco Radio 1928-1942 (Philco 1942 RMS Year Book)
Literature/Schematics (2) Pre-War Consoles
Literature/Schematics (3) Radio Retailing (Radio & Television R.) (September 1941 page 31.)
