42-RP-1 Wireless record Player

Philco, Philadelphia Stg. Batt. Co.; USA

  • Year
  • 1941/1942
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 50846

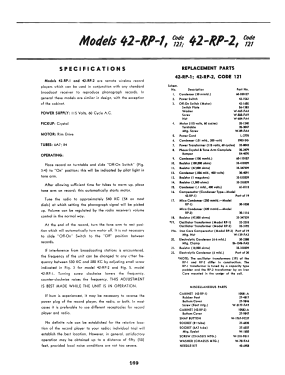

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 42-RP-1 Wireless record Player - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Wireless Record Player, transmitting on 530-580 kc (adjustable). Models 42-RP-1 and 42-RP-2 are similar except for cabinets (42-RP-2 has a lid) and a minor circuit change (42-RP-1 is tuned by a capacitive trimmer; 42-RP-2 is tuned by an adjustable slug in a coil).
  • Price in first year of sale
  • 18.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Literature/Schematics (1)
  • Philco 1942 RMS Yearbook
