46-1226 Code 121 Radio-Phonograph; Philco, Philadelphia (ID = 2422152) Radio
Philco, Philadelphia: 46-1226 Code 121 Radio-Phonograph [Radio] ID = 2422152 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 46-1226 Code 121 Radio-Phonograph 7F8 mixer, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1945–1947 Category: Broadcast Receiver - or past WW2 Tuner

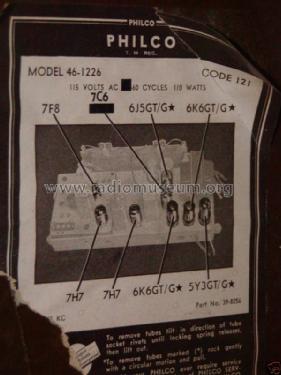

Valves / Tubes 8: 7F8 7H7 7H7 7C6 6J5GT 6K6GT 6K6GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 60 cycles, 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 46-1226 Code 121 Radio-Phonograph [7F8 mixer] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with any shape - in general
Notes

The Philco 46-1226 Code 121 is an AC operated 8 tube combination BC/SW receiver and record changer.  Uses record changer D-10. BC band tuning range is 540 - 170kHz.  SW band tuning range is 9.3 - 15.5MHz.

Code 121- see also the models with other codes, having the same cabinet. The "Chicago Daily Tribune" August 17, 1947 contains an ad from Philco for the following models: 1226, 1230FM, 1227FM, 1201, 360 and 1256. It is a typical add for selling out the 1226, 1230FM and 1227FM with a trade in of 30 $. Later Philco will offer the "1948 line" in fact 1947/48.

Mentioned in Philco Home Radio Yearbook 1946-1947

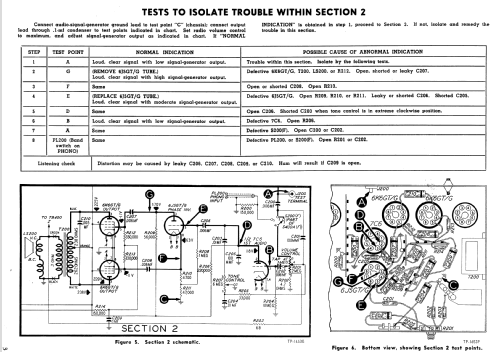

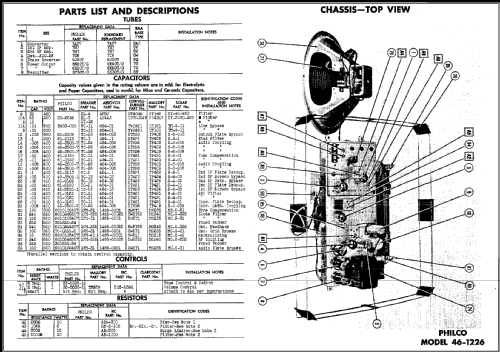

Literature/Schematics (1) Rider's Perpetual, Volume 15 = 1947 and before (pp.22,39 ff.)
Literature/Schematics (2) - - Manufacturers Literature (Philco Service Manual PR-1111 Dated 1946)

Model page created by Gidi Verheijen. See "Data change" for further contributors.
