48-200 Code 121

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217833

• Picture
• Schematics

Previous Next

Previous Next

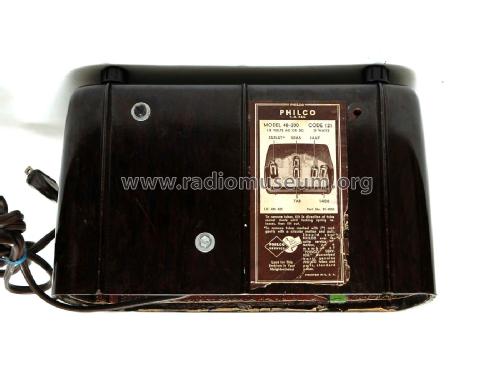

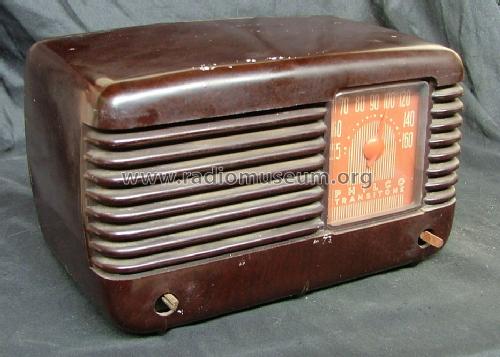

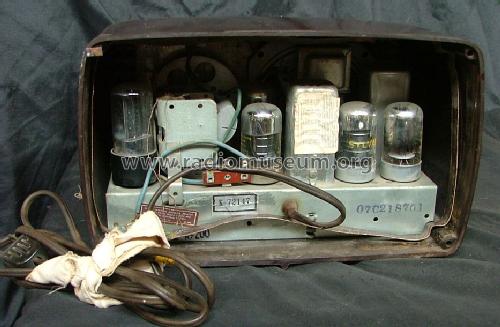

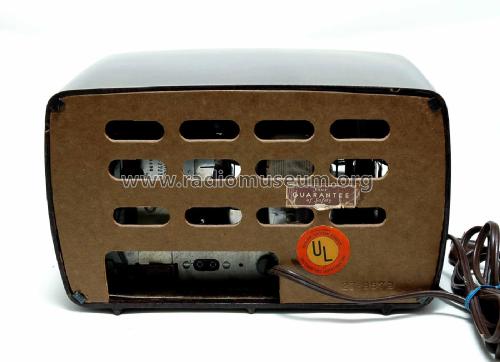

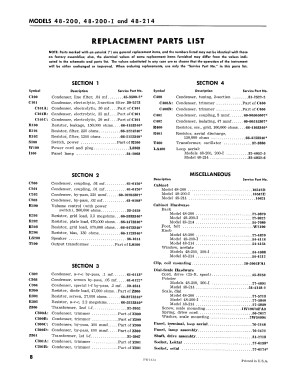

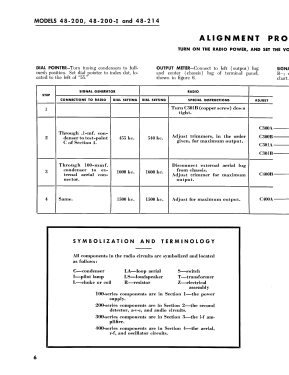

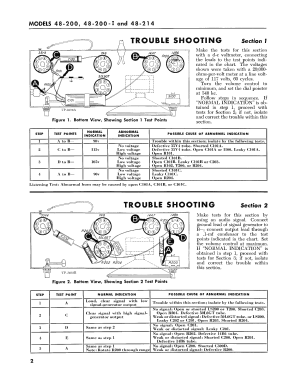

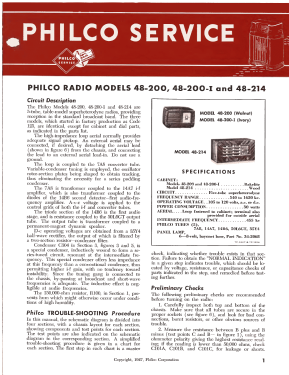

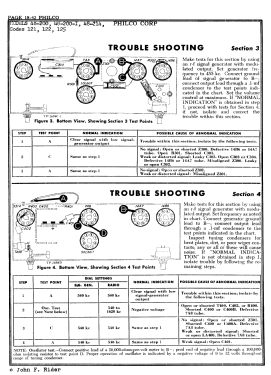

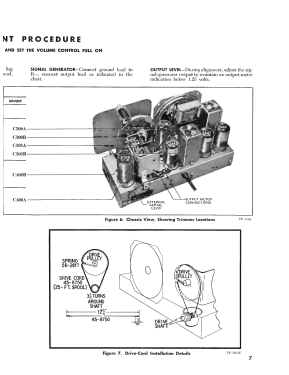

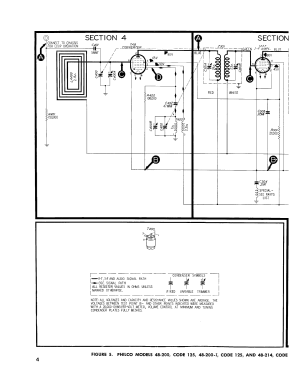

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

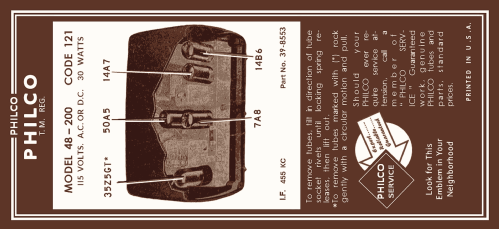

• Valves / Tubes
• 7A8 14A7 14B6 50A5 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 48-200 Code 121 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10 x 6 x 6.5 inch / 254 x 152 x 165 mm

• Notes

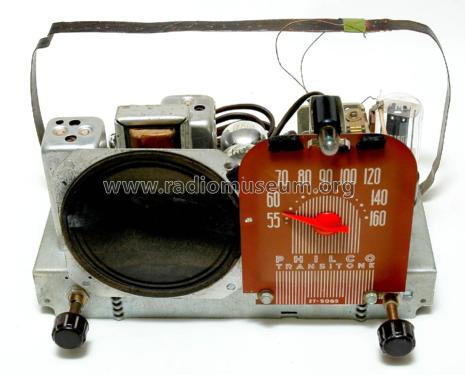

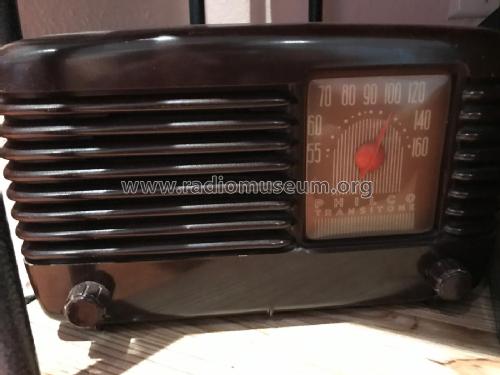

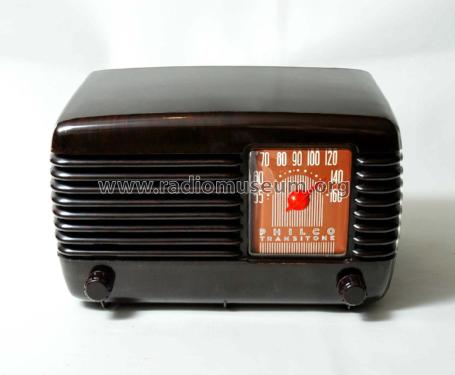

• Philco Table Top 5 Tube AM Radio Model 48-200 Code 121.
  Power Consumption 30 Watts.

• Net weight (2.2 lb = 1 kg)
• 5 lb 0 oz (5 lb) / 2.270 kg

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
