• Year
  • 1928
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 51054

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

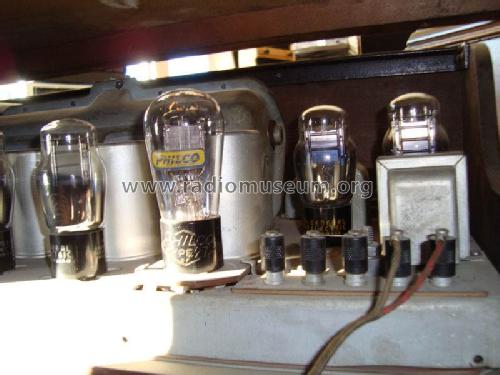

  • Number of Tubes
  • 7
  • Main principle
  • TRF without regeneration; Neutrodyne
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt

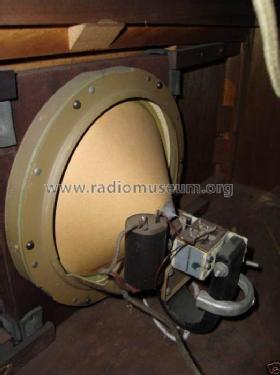

  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 531 - Philco, Philadelphia Stg. Batt
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

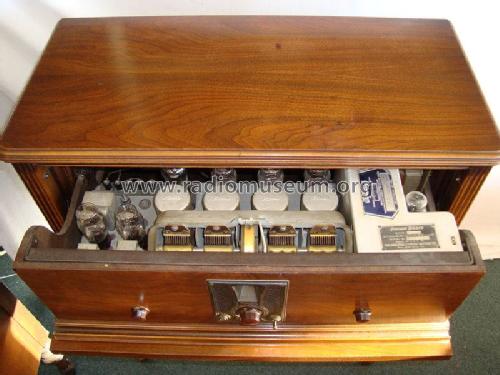

  • Model 531 was part of Philco's first family of radio receivers introduced in 1928. It has a common chassis with all other 1928 Philco radio models. Walnut lowboy cabinet. One dial (primary tuning control knob).
  • Price in first year of sale
  • 200.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Literature/Schematics (1)
  • Philco Radio 1928-1942 (Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data)
