- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 51072
Beitman
eBay seller comet.vintage. Shade is missing
With courtesy by Catalinradio.com

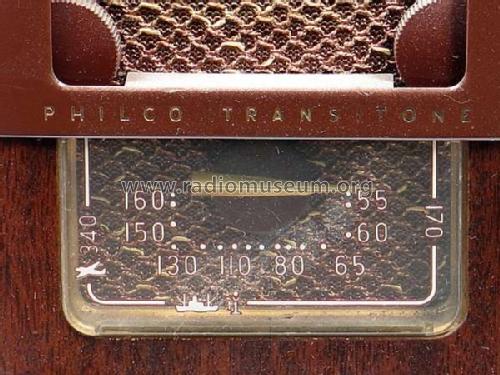

With courtesy by Catalinradio.com dial view
Lamp socket and shade are missing.
With courtesy by Catalinradio.com

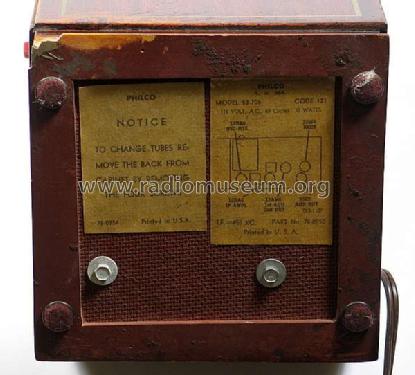

With courtesy by Catalinradio.com back view
Philco Advertise
Found it in a friend's house
Found it in a friend's house
Found it in a friend's house
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 53-706 - Philco, Philadelphia Stg. Batt
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Notes
-
Philco model 53-706 is an AC operated two band AM superheterodyne receiver with electric clock.
Note that the Philco 53-702, 53-706, and 53-707 all use the same chassis but in very different cases.
The 53-702 is a horizontal plastic case (horizontal chassis) with the clock on the left, the speaker in the middle, and the tuner on the right.
The 53-706 is a vertical wood case (vertical chassis) with a lamp and shade on top, the clock at the top (directly below the lamp), the speaker in the middle, and the tuner at the bottom.
The 53-707 is a vertical wood case (vertical chassis) (no lamp) with the clock at the top, the speaker in the middle, and the tuner at the bottom. There is also a door with grill cloth that covers the tuner and speaker.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 13, 1953
- Mentioned in
- Table Top Radios Vol. 1 Stein 98
- Literature/Schematics (1)
- Rider's Perpetual, Volume 23 (last) = covering up to 1954
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 40.)
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 202, folder 5, dated 5-53)
- Other Models
-
Here you find 4120 models, 2227 with images and 3768 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Collections
The model 53-706 is part of the collections of the following members.
