641B Late
Philco, Philadelphia Stg. Batt. Co.; USA
- Land
- USA
- Hersteller / Marke
- Philco, Philadelphia Stg. Batt. Co.; USA
- Jahr
- 1936
- Kategorie
- Rundfunkempfänger (Radio - oder Tuner nach WW2)
- Radiomuseum.org ID
- 141804
Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.
- Anzahl Röhren
- 7
- Hauptprinzip
- Super mit HF-Vorstufe; ZF/IF 460 kHz
- Wellenbereiche
- Mittelwelle, Kurzwelle und Tropenband.
- Betriebsart / Volt
- Gleichstromnetz-Gerät / 115 Volt
- Lautsprecher
- Dynamischer LS, mit Erregerspule (elektrodynamisch)
- Material
- Gerät mit Holzgehäuse
- von Radiomuseum.org
- Modell: 641B [Late] - Philco, Philadelphia Stg. Batt
- Form
- Tischgerät, Hochformat, dekoratives Gehäuse oder runde Ecken.
- Bemerkung
- The Philco 641 series is based on a 115 V DC-only 7-tube chassis with three band coverage: BC, 2.2-2.6 MHz, and 5.8-18 MHz.
There are three models with different cabinet styles: The early version (1935) of model 641B is a shouldered tombstone; the late version (1936) of 641B is a tombstone with slightly trapezoidal shape. Model 641X (1935-36) is a floor-type console.
- Originalpreis
- 75.00 $
- Datenherkunft
- Philco Radio 1928-1942
- Schaltungsnachweis

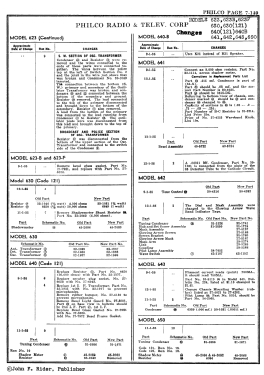

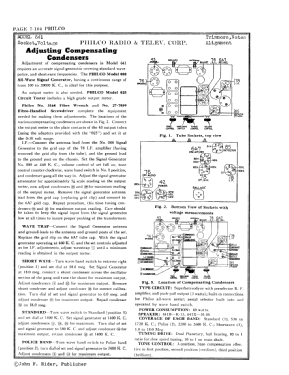

- Rider's Perpetual, Volume 7 = 1936 and before
- Literatur/Schema (1)
- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
- Autor
- Modellseite von Thomas Albrecht angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
