• Year
  • 1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 137989

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

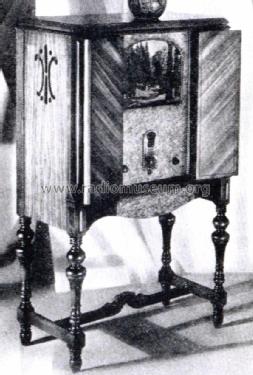

  • Model: 65 Highboy [Late] - Philco, Philadelphia Stg. Batt
  • Shape
  • Console, Highboy (legs > 50 %).
  • Notes
  • Model 65 was available in a metal table cabinet, a lowboy, a console (actually a small highboy), a highboy, a Tudor highboy, and a deluxe highboy. The "early" versions had only three controls (tuning, volume, and power); a local/distance switch was added on the "late" versions.

  • Price in first year of sale
  • 140.00 $
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

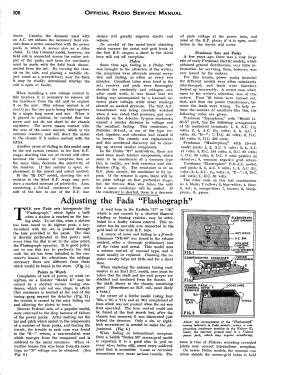

  • Literature/Schematics (1)
  • Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
  • Literature/Schematics (3)
  • Philco Folder Form. 2120 for 1929.
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
