ST-12 Studebaker

ST-12 Studebaker; Philco, Philadelphia (ID = 414382) Car Radio ST-12 Studebaker; Philco, Philadelphia (ID = 414383) Car Radio

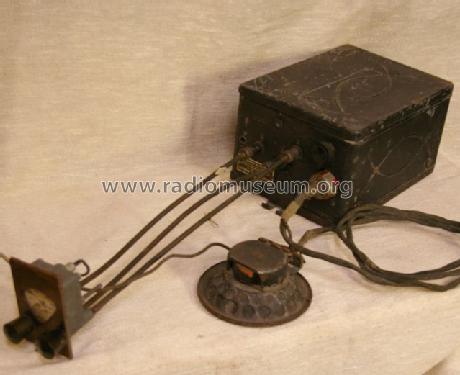

ST-12 Studebaker; Philco, Philadelphia (ID = 414384) Car Radio ST-12 Studebaker; Philco, Philadelphia (ID = 414604) Car Radio
Use red slider bar for more.

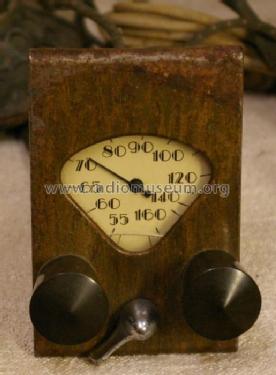

ST-12 Studebaker; Philco, Philadelphia (ID = 414382) Car Radio
Philco, Philadelphia: ST-12 Studebaker [Car Radio] ID = 414382 517x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model ST-12 Studebaker, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1935 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 78 6A7 78 75 41 84
Main principle Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: ST-12 Studebaker - Philco, Philadelphia Stg. Batt
Notes This model is equipped with a vibrator for the generation of B+.
External source of data Ernst Erb

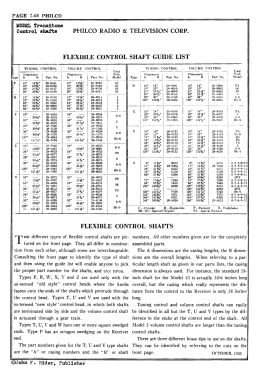

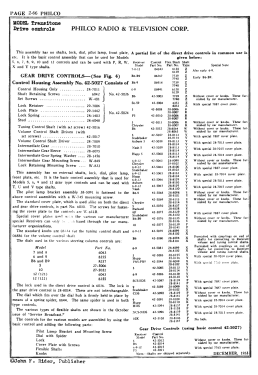

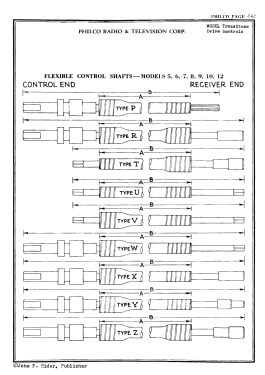

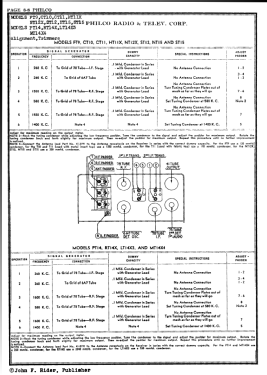

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
