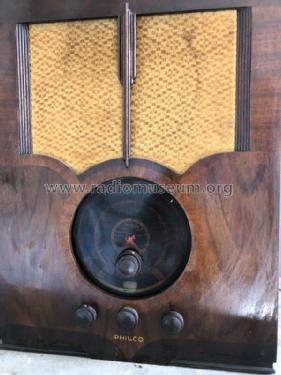

A53; Philco Radio of GB (ID = 2425640) Radio
Philco Radio of GB: A53 [Radio] ID = 2425640 600x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model A53, Philco Radio of GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Philco Radio of GB
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78E 75 2151 25RE 302
Main principle Superheterodyne (common); ZF/IF 451 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 190-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: A53 - Philco Radio of GB
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 480 x 242 mm / 15 x 18.9 x 9.5 inch
Notes

Similar to the Philco People's Set V537 but wooden case, tune control and bigger speaker.
