A-UT1856HM Ch= 81, H-1 Code 123

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694048) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694049) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694050) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694051) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694052) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694053) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694054) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694055) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694056) Television

A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694057) Television
Use red slider bar for more.
A-UT1856HM Ch= 81, H-1; Philco, Philadelphia (ID = 1694048) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1953 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: 6BZ7 12AZ7 6CB6 6CB6 6CB6 12BY7 6AU6 6T8 6K6GT 6U8 6BE6 12BH7 6AL5 12AU7 6BQ6GT 6AX4GT 1B3GT 17YP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 117 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: A-UT1856HM Ch= 81, H-1 [Code 123] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 26 x 40 x 25 inch / 660 x 1016 x 635 mm
Notes

The Philco A-UT1856HM is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with RF chassis 81, Deflection chassis H-1 and picture tube 17YP4.

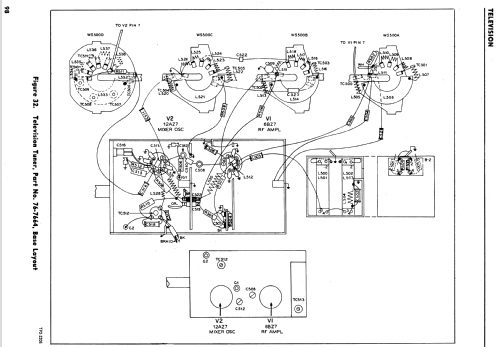

Literature/Schematics (1) - - Manufacturers Literature (Philco Television Yearbook - 1953 Pages 163-192)

Model page created by John Kusching. See "Data change" for further contributors.
