A-UT2292L (Code 128) RFCh= 94, SweepCh= J-5, Radio Ch= RT-11 , record changer model M-24
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1953 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 367977

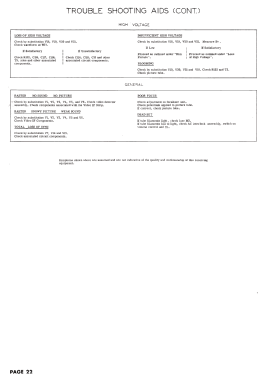

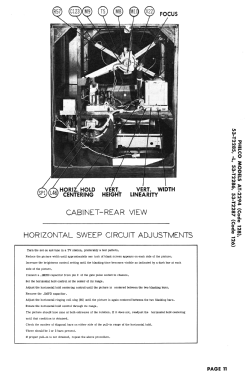

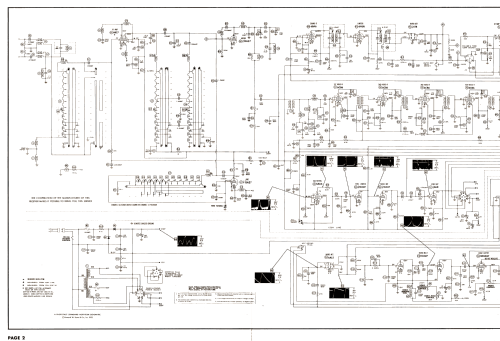

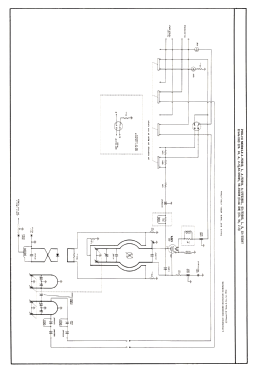

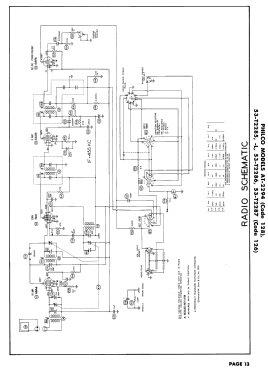

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6BZ7 or 6BQ7 12AZ7 6CB6 6CB6 6CB6 6CB6 6U8 6AQ5 6AU6 6BA6 6AU6 6T8 6L6GA 12AU7 12AU7 12BH7 6AL5 12AU7 6BQ6GT 6AX4GT 1B3GT 6BA6 7A8 6AU6 6AV6 21EP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: A-UT2292L RFCh= 94, SweepCh= J-5, Radio Ch= RT-11 , record changer model M-24 - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-
Philco model A-UT2292L is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with TV--AM-phono combination receiver, VHF tuner 76-7600 and picture tube 21EP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 213, folder 5, dated 8-53)
- Literature/Schematics (2)
- Set 226, folder 1, dated 1-54
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
