For model All Purpose Set Tester 048, Philco, Philadelphia Stg. Batt. Co.; USA:
USA_Philco_048_Main View

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1932 ?? Category: Service- or Lab Equipment
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 2 x ? Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: All Purpose Set Tester 048 - Philco, Philadelphia Stg. Batt

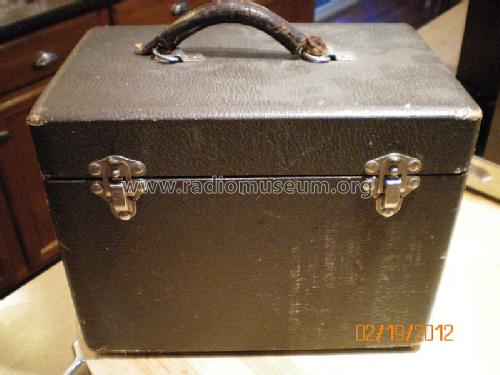

Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12 x 9 x 7 inch / 305 x 229 x 178 mm
Notes Philco 048, All Purpose Set Tester;
One instrument, 20 banana plug terminals, combines a signal generator, DC voltmeter, AC voltmeter, DC milliampmeter, ohm meter, capacitance meter & output meter.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
