AR-45

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1941 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 7A7 7B8 7A7 7B6 7C5 7Y4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AR-45 - Philco, Philadelphia Stg. Batt
Notes This model is equipped with a vibrator for the generation of B+.
External source of data Ernst Erb

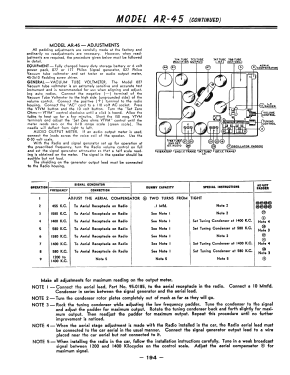

Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Philco 1941 RMS Year Book
