• Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 51292

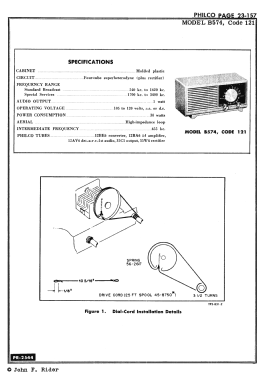

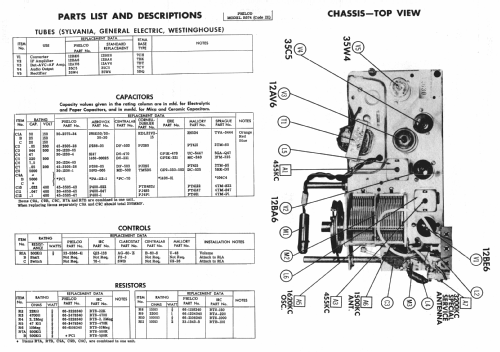

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: B574 Code 121 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Wired Circuitry.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 14, 1954
