• Year
  • 1954
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 80946

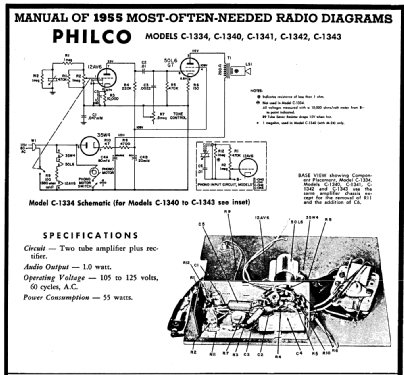

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • from Radiomuseum.org
  • Model: C-1342 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Philco Model C-1342 is an AC Operated Phono Amplifier with 3 Speed Automatic Record Changer Philco Type M-26.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
